BMW R 1300 GS 2024+ Spindle Bobbins

Features of EP Rear Spindle Bobbins for BMW R 1300 GS Option 719 Tramuntana

 Unique design by Evotech Performance

• Cassette-style mounting securely holds rear wheel protective nylon bobbin
• Cassette mount incorporates O-rings to prevent ingress of water to the wheel hub
• Hub stop made from powder-coated aluminium
• Anodised internal components for longevity
• Simple and quick to install: grease, insert and tighten
• Replacement nylon bobbin are available to purchase separately



 What is Spindle Bobbin Crash Protection?

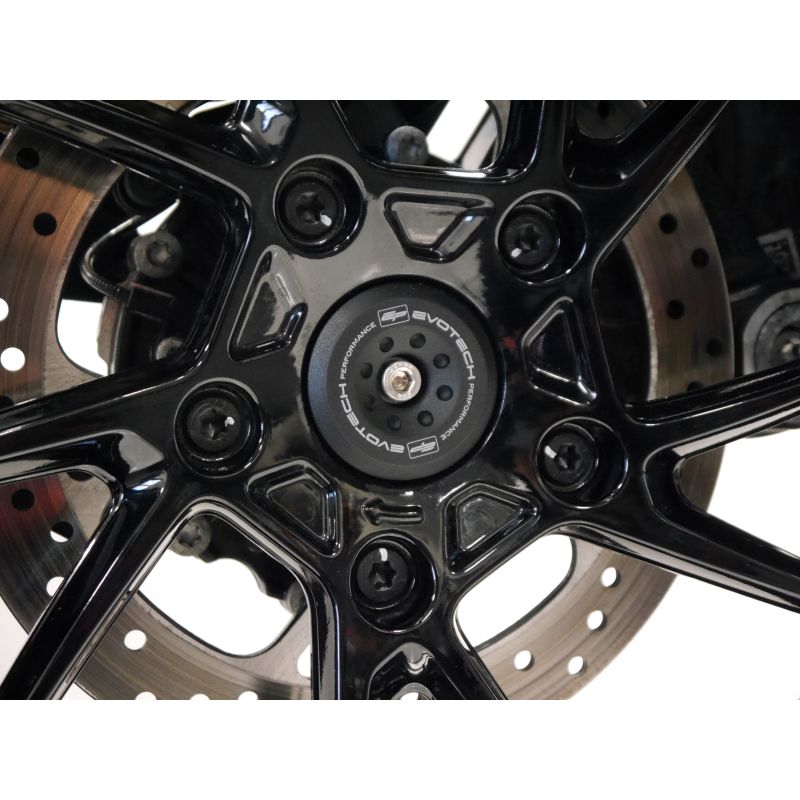

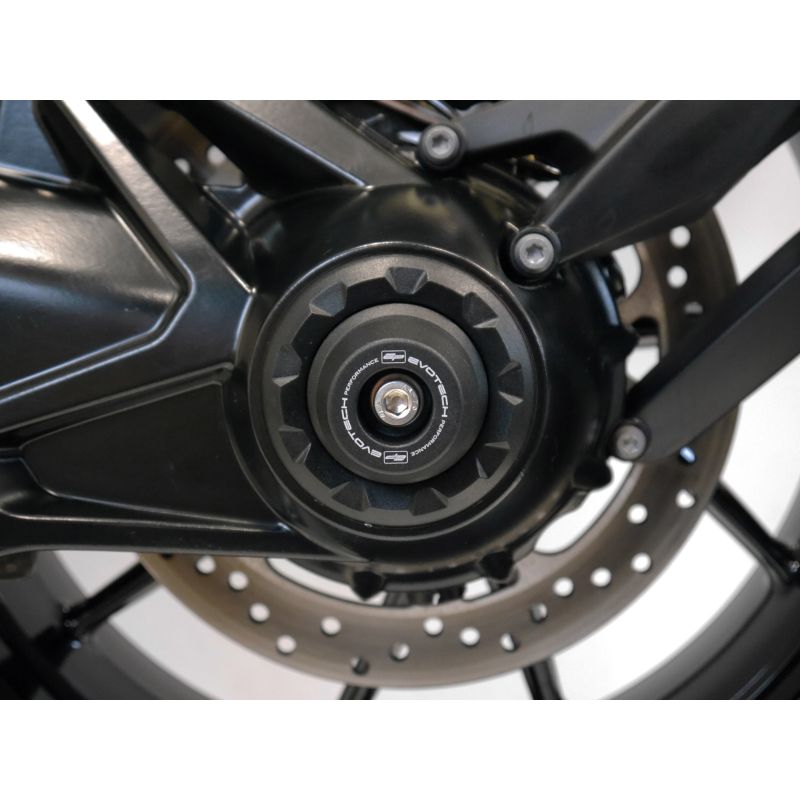

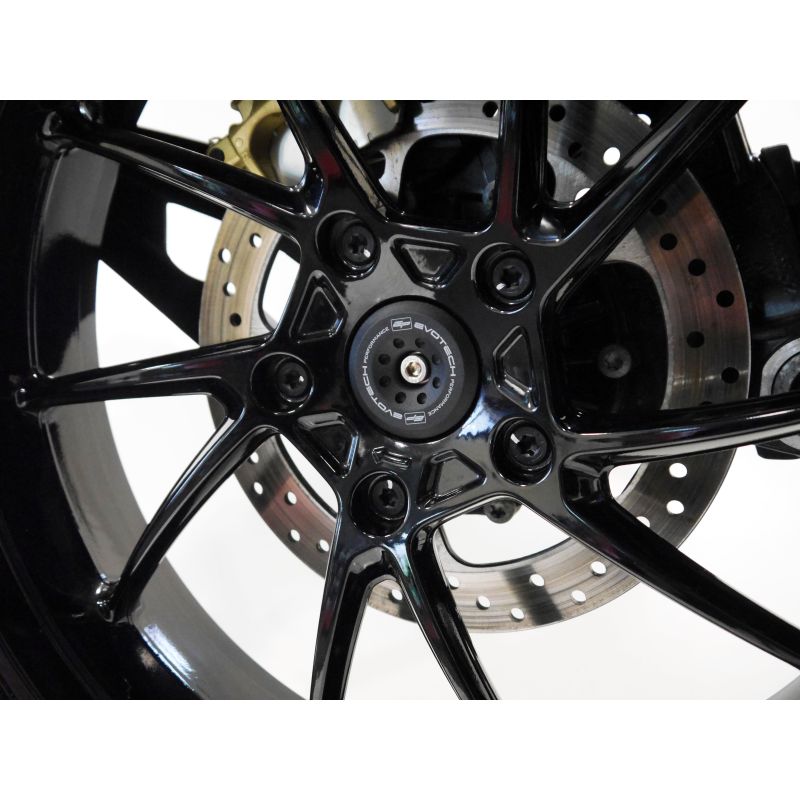

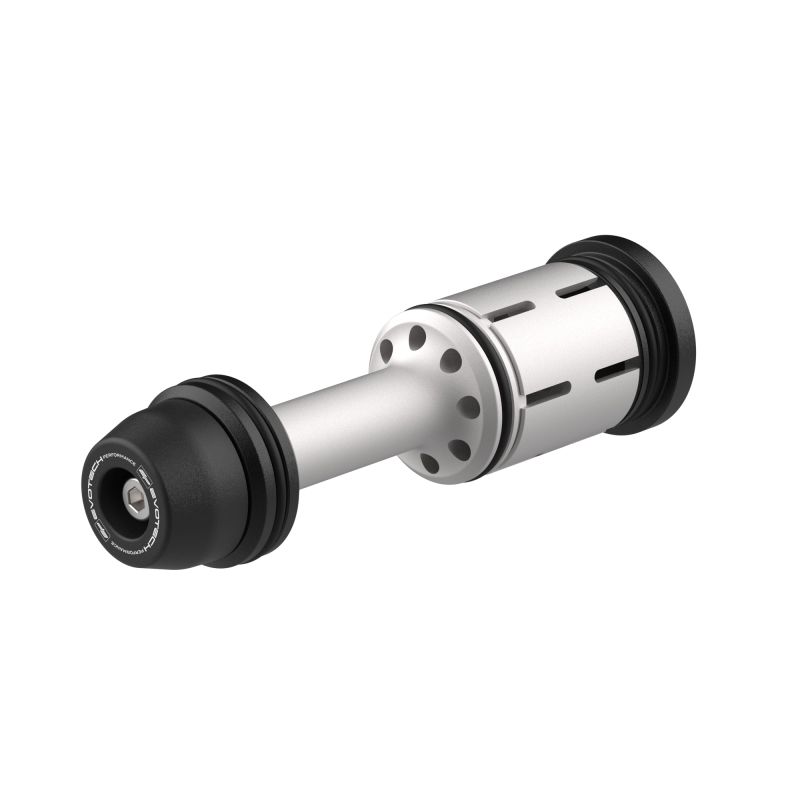

Projecting from the driveline side of the BMW R 1300 GS (2024+), the nylon bobbin head and aluminium centralising spacer protects the rear of the Cardan drive shaft casing, hub and wheel. Made from injection-moulded nylon, the bobbin head sits above an aluminium centralising spacer and revolves with the wheel to minimise impact damage on one area and reduce stress on the wheel. A machined and coated aluminium hub stop on the non-drive side complements the GS' stylish design.

This product is protected under the following registered design rights.

EU Reg. Design: 007800099-0019
UK Reg. Design: 9007800099-0019

Compatibility:

All Evotech Performance products are 100% compatible without modification with the indicated motorcycle model. Assembly does not require any additional components.All accessories are Plug & Play compatible with the original components of the bike. Any additional components necessary for assembly are always supplied in the kit.

Assembly guide:

On the bottom of this description you can download the photographic assembly manual which contains the list of components, if the link does not work you can ask for the manual after placing the order and it will be sent to you.

Assembly guide
