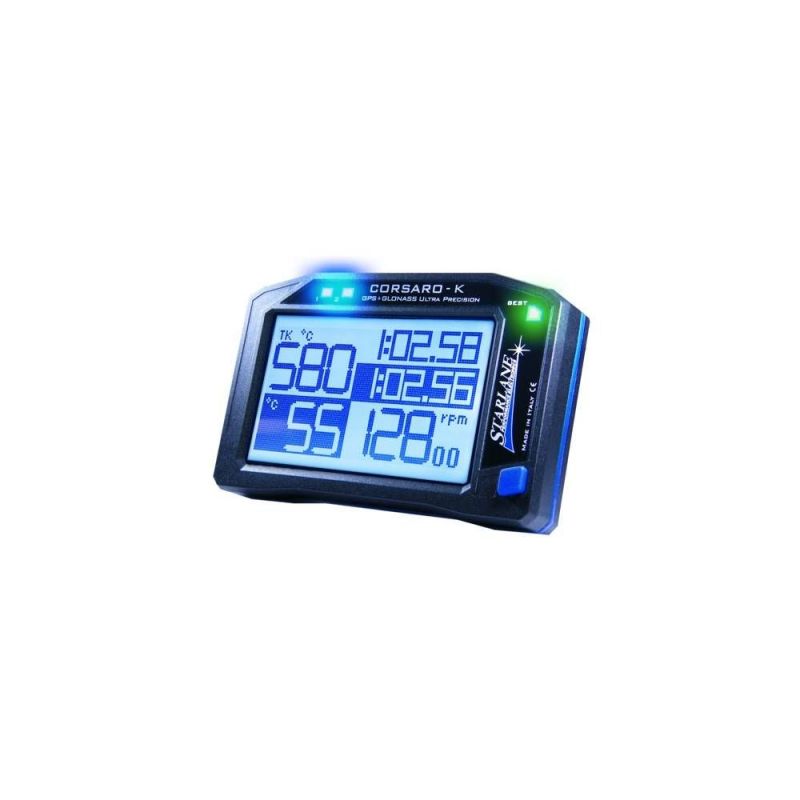

CORSARO K GPS GLONASS Stopwatch Bluetooth Touch Screen Display for Scooter Kart ADV

You can save 2% on this order and pay €430.42 if you join Sixrace Pro

STARLANE

€463.60
€440.42 Save 5%
Tax included
CORSK (ID 38549)

Starlane GPS + GLONASS stopwatch with Monochrome Touch Screen Display and Bluetooth connection. Specific version for Scooter - Kart - ATV that can only work on vehicles with a maximum speed of 165Kmh. Includes: WID-A K module, CH2OM10 water sensor + MAN19 sleeve and RPM input and exhaust gas temperature (exhaust probe not included). Can be updated online with version with lean angle and lateral and longitudinal accelerations.

Quantity
Available

GPS + GLONASS stopwatch with Monochrome Touch Screen Display and Bluetooth connection. Specific version for Scooter - Kart - ATV that can only work on vehicles with a maximum speed of 165Kmh. Includes: WID-A K module, CH2OM10 water sensor + MAN19 sleeve and RPM input and exhaust gas temperature (exhaust probe not included). Can be updated online with version with lean angle and lateral and longitudinal accelerations.

CORSARO is certainly the most innovative product in the sector, with all rights
for the philosophy with which it was conceived and designed,
as well as for the technological condensate that holds in a well-kept design with compact dimensions.



CORSARO revolutionizes the concept of chronometer and data acquisition system and defines a new global technological step in the sector.



It allows immediate use thanks to the integrated library of hundreds of complete circuits of intermediates, among which the device automatically recognizes the current one.

Equipped with SEPLA function (Starlane Enhanced Precision Laptiming Algorithm): a lap time calculation algorithm that allows maximum precision levels.



INDICATION OF THE FOLD ANGLE


CORSARO supports the new features of the Inertial Pack
can be activated from the site at any time as an additional option.

With the Inertial Pack the cal functionality is activatedcolor and indication of:

ANGLE OF BEND

LATERAL ACCELERATION in G

LONGITUDINAL ACCELERATION in G

The DigiraceMMX analysis software will therefore also show the acceleration and bend angle graphs.


The system calculates the bending angle relative to the axis (B) passing through the center of gravity
of the bike + driver set, therefore also considering the position of the pilot.

Fold angle is calculated by a high precision algorithm developed by Starlane
and does not require the installation of sensors on the vehicle.
Unlike other systems, it also allows the correct alignment of the angle data
and acceleration with instantaneous position on the circuit.



You can view the bend angle on the appropriate screen that indicates the current angle
and the maximum degrees reached in the last curve to the right and to the left.
The maximum levels reached in the session are also highlighted on the screen
differentiated between left and right corners.



The CORSARO project has been studied down to the smallest detail, such as the gasket, which not only performs the function of water tightness but is an elastic part of the SDGS (Starlane Dampening Gasket System), an anti-vibration system integrated in the body, which allows safeguard the internal electronics mounted on the front, which therefore remains completely suspended and, in addition to the elastic fixing of the instrument on the vehicle, it undergoes a strong damping from the vibrational stresses that could otherwise heavily damage any electronic device.

The SDGS is an exclusive Starlane system, the result of the experience gained by facing the most varied problems arising from the most extreme uses of products whose installation is the focal point for durability and reliability over time.



Like every detail, the CORSARO power cable outlet has also been designed to allow maximum compactness and installation flexibility. The silicone cable gland guarantees water tightness, maintaining total flexibility, and allows the cable to be oriented in any direction according to the most varied installation requirements.

This solution leads to a practically zero increase in the thickness of the device and is not comparable to the cumbersome rigid connectors usually used which protrude several centimeters from the back of the instrument, creating great constraint in the installation.

The Micro USB socket allows you to easily recharge the internal battery in cases where the instrument is not powered by the vehicle's battery.


WIDELESS WIDELESS MODULE WID-D (60mm X 44mm X 21mm) WITH RECHARGEABLE INTERNAL BATTERY THAT ALLOWS UP TO 7 DAYS OF AUTONOMY ON THE TRACK, ALSO POWERED EXTERNALLY.


WID-D (code WD)

Available inputs:

- Water temperature
-Thermocouple K for exhaust gases
- Engine revs
- Generic 0-5V analogue used for TPS (Accelerator Position Sensor)
- Wheel speed

Supply:

- Internal rechargeable battery
- 5-15V secondary power input

The engine revs can be detected both inductively and from the vehicle signal using the cable supplied with the module.
The other sensors are optional and available in the Starlane catalog.
For some inputs, such as RPM, TPS and Wheel Speed, it is possible to connect to signals already available as standard on the main motorcycle models.



WIDELESS WIDELESS MODULE WID-C (60mm X 44mm X 21mm)


WID-C (code WC3A)

Available inputs:

-3 Generic analogs for connecting sensors with 0-5V analogue output such as, for example: linear potentiometers for
suspensions with codes: SSLIN075M8, SSLIN150M8, SSLIN075PROM8, SSLIN150PROM8 or pressure sensor
brake with code SSPBK60M8.

- CAN BUS line for compatible vehicles and for Starlane RID modules.

-Power supply: 12V of the vehicle.



RID-LAMBDA (code RID2RLT) is supplied with the BOSCH LSU4 linear probe and, via the transmitter supplied, transmits the Air / Fuel, Engine RPM and Accelerator Opening values via radio to CORSARO in order to perform the mapping of the own engine management system.


IF YOU DO NOT WANT TO USE YOUR PC OR PRESS BUTTONS ON THE CIRCUIT, THE SAFD-2 FUNCTION (Starlane Automatic Finish line Detection) WILL AUTOMATICALLY DIVE THE CIRCUIT AFTER THE FIRST 2 ROUND ROUTES, ALLOWING YOU TO SEE YOUR TIMES AND INTERTEMPES ALREADY FROM THE FIRST SESSION WITHOUT INTERVIEWING ON THE CHRONOMETER.



CORSARO allows data download via Bluetooth.
With the Digirace-MMX software it is possible to analyze downloaded sessions. Apps for Android and iOS will soon be available.

Another feature that makes CORSARO unique is the possibility of being connected to the optional wireless WID (Wireless Input Device) expansion modules, which allow acquisition from external sensors (eg accelerator, suspension, etc.) or from the CAN BUS line of the vehicle, thus creating a professional data acquisition system, complete and unique in the world, being totally expandable wirelessly.



BlueOcean overlay


Data overlay generated with Starlane DigiRace-MMX 2.0


THE CHARACTERISTICS OF CORSARO


1) GPS + GLONASS DOUBLE CONSTELLATION RECEIVER AND INTEGRATED ANTENNA IN THE INSTRUMENT:
the body in CORSARO shockproof glass-filled Nylon houses the new double-constellation receiver that uses the satellites of the American GPS system and the Russian GLONASS system in symbiosis. This solution greatly increases the precision thanks to the very large number of satellites used to determine the instantaneous position, speed, trajectory and lap time.

2) YOU CAN SAY GOODBYE TO THE DIFFERENT INFRARED TRANSMITTERS ON THE BOX WALL:
the use of the GPS + GLONASS system for the detection of lap time makes CORSARO totally autonomous without the need for trackside references such as the transmitters used by the old-generation infrared-based systems.
It then becomes much easier, without the hassle of positioning the transmitter with the inconvenient battery to recharge and the risk of forgetting it on the wall or suffering the theft.

3) GOAL MANAGEMENT AND 3 INTERMEDIATE:
thanks to the target library available in the tool or in the DigiRaceMMX software or with the automatic or manual positioning functions, it is possible to manage the coordinates of 4 goals (main finish line + 3 optional intermediates), when passing through each finish line and intermediate CORSARO indicates the relative travel time and memorize the value, it is therefore possible to quickly evaluate your performance even in parts of the track far from the main straight, which would be expensive and inconvenient to carry out with any other type of chronometer.


4) INDICATION OF REACHABLE IDEAL TIME:
thanks to the intermediates management CORSARO calculates for each session the time ideally reachable by the pilot, this function is obtained by adding the best sector times. It is thus possible to understand what the time on the oct lap would beenibile if no traffic had been found at a particular point on the track or if a lap had been made to the maximum of its absolute possibilities.

5) BEST LAP LED "DOUBLE FUNCTION:
the "BEST LAP" LED lights up with respect to the previous lap and flashes if the lap ended is the best of the session, this solution allows you to give the pilot the information necessary for the performance without distracting him.
If the milestones have been set, the LED is also activated when passing through each intermediate, it is therefore a very convenient tool to understand, without being distracted, if it is improving with respect to the same intermediate time of the previous lap or if the best split time of the session.

6) GPS SPEED DETECTION:
the advantage of using the GPS + GLONASS system also translates into the possibility of detecting vehicle speed with extreme precision and without the need to install sensors on the vehicle, it does not require any setting by the user and, above all, detection is always accurate and not distorted by the inclination of the vehicle or by possible skids or inevitable deformations of the tire.


7) MOTOR REVENUE * WITH OUTLOOKING FLASH OF TAXES:
CORSARO is not only a chronometer and tachometer but it is also an engine tachometer with the possibility of setting the shifting speed set by the user and indicated by the high power LEDs at will.el Flash of Fuorigiri configurable also in the coloring. The speed can also be viewed on the display. The engine speed can be detected either by positioning the inductive cable near one of the ignition coils, or by connecting it to the signal wire that goes to the original rev counter.

8) RUNNING INDICATOR * and WATER TEMPERATURE * WITH ADJUSTABLE ALARM:
CORSARO can also indicate the gear engaged by calculating the ratio between the engine revs and the wheel speed; with the optional temperature sensor it can also indicate the water temperature.

9) DISCHARGE GAS / OIL TEMPERATURE DETECTION * WITH ADMISSIBLE ALARM:
CORSARO is equipped with an input for an optional K thermocouple probe that allows the detection of the exhaust gas temperature, necessary for the correct carburation of the 2-stroke engines, or the oil temperature for the 4-stroke engines. It is possible to set an alarm threshold light for the thermocouple probe.

10) DOUBLE HOUR METER FOR PERFECT VEHICLE PERIOD MAINTENANCE:
CORSARO also has two separately reset hour-meters to respect the periodic maintenance of the vehicle, the hour-meters are activated both for the reception of the engine speed signal and for the reception of the speed signal by GPS + GLONASS, this solution makes the hour-meters work also if you do not want to connect the engine speed signal.

11) SCARICO BLUETOOTH DATA AND WiFi:
CORSARO is equipped with both Bluetooth and WiFi (WiFi functionality available shortly through firmware update) for setting parameters and targets and downloading the acquired data which can then be analyzed directly with the Digirace-MMX software.


* See features of the optional WID and RID modules to enable this feature.



12) USE WITH DIGIRACE-MMX SOFTWARE:
to manage the trajectory analysis functions it is always possible to download the DigiRace-MMX software from the Starlane website, which allows the archiving, analysis and printing of the acquired data and the graphic representation of the trajectories traversed with the related acceleration and disconnection points allowing comparison by lap.



13) MEMORY OF 999 LAPS WITH AUTOMATIC MANAGEMENT OF 99 TEST SESSIONS:
CORSARO automatically creates a new session every time you enter the track, in this way you can calmly analyze the times stored in the various sessions even at the end of the day without being forced to cancel the memory before each entry on the track. Date and time are memorized of each session and, for each lap, the relative total time, intermediate times, maximum speed, maximum engine revolutions are memorized.

14) CYCLICAL MANAGEMENT OF MEMORY:
With CORSARO you will never find yourself in the condition of exhausted memoryi, to allow easy continuous use, manages the available space by automatically deleting the oldest sessions when the memory is almost full.

15) STORAGE OF THE COORDINATES OF GOALS OF THE MOST USED TRACKS:
it is possible to store the coordinates acquired for the finish line of the tracks on which you are training most frequently, up to 16 circuits can be stored, so you can easily recall the finish line of the current track without having to reset it each time.

16) LARGE DIMENSION TFT DISPLAY WITH TRANSFLECTIVE COLOR WITH TOUCH SCREEN:
CORSARO is equipped with a display that uses transflective technology, a rare and unique feature for color displays, which allows full visibility even under direct sunlight and with backlight off.
The precise resisted Touch Screen allows easy use of the device even when wearing gloves. This solution has allowed the development of an interface with icons of unparalleled simplicity and immediacy in the analysis of the stored data and in the setting of the functions desired by the user.

17) INTERNAL BATTERY AND EXTERNAL POWER SUPPLY:
equipped with an internal lithium battery and also powered by the vehicle's 12V battery. CORSARO is equipped with powerful energy-saving and auto-off functions that can be set by the user to maximize battery performance. It is supplied with a prspecific elongated with eyelets for connection to the battery and a connector on the side of the instrument that allows for quick disconnection.

18) COMPLETE WATERPROOF:
CORSARO is water resistant and can therefore be used even in case of rain.


The DigiRace-MMX analysis software can be downloaded for free below ...


Specifications:

Automatic chronometer with 1 / 100th of a second resolution
GPS + GLONASS dual constellation detection system at 10Hz. with aeronautical algorithms
Integrated library with hundreds of circuits with relative intermediates
Automatic finish and intermediate positioning function without any user intervention (SAFD-2)
Calculation of the Ideal Ideal Time
Calculation and display of 3 intermediates
Multilingual menu (Italian, English, German, French, Spanish)
Digital tachometer *
Speed indication from GPS
Gear indicator inserted *
Water Thermometer *
Thermocouple Thermometer K 1000 ° *
Adjustable water temperature and thermocouple alarms *
Max reading Speed = 32000; max speed = 350 Km / h or 218 Mah *
Adjustable runaway flash *
Number of pulses per reading RPM settable *
Double hour meter for engine maintenance
Bluetooth 4.0 data download
Memory of 999 laps that can be managed in 99 sessions
Cyclic memory management with automatic deletion of the memoryolder sessions
Storage of maximum RPM values, Water Temp, Drain Temp and Speed for each lap * Indication of speed in Km / h or Mph *
Settable auto-off
Adjustable energy saving functions
Main screen can be set
Transflective Monochrome backlit display 128x64 with Touch Screen
Waterproof
Dimensions: width 95 mm - alt. 61 mm - prof. 19.5 mm - weight 95 g
Power supply: internal lithium battery or 12V from the vehicle battery
Universal installation
Optional Inertial Pack functionality with Bend Angle indication that can be activated online
DigiRace-MMX software downloadable from the site
Destination: Auto - Moto - Scooter - Kart-ATV

Package Contents of CORSARO (COD. CORS):

N ° 1 CORSARO instrument
N ° 1 Elastic Support Kit
N ° 1 Velcro fastening kit Dual Lock Sticker
N ° 1 12V battery power cable of the vehicle
N ° 1 User's Manual

Screenshots:





















"
