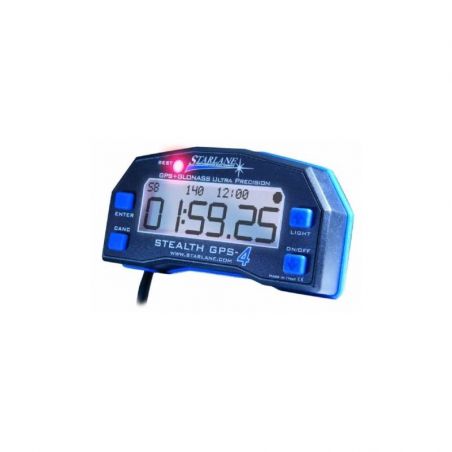

STEALTH GPS-4 LITE GPS stopwatch GLONASS Interval Speed Counter

GPS + GLONASS stopwatch with intermediate times + GPS speed + double hour counter + exhaust time and speed. External power supply. Can be updated online in Full version with Data Acquisition and trajectories and / or with Bending Angle and Lateral and Longitudinal Accelerations.

NEW VERSION WITH SATELLITE RECEIVER WITH DOUBLE CONSTELLATION GPS + GLONASS THAT ALLOWS UNLIMITABLE PRECISION LEVELS, WITH KEYS AND GASKETS IN SPECIAL ELECTRIC BLUE SILICONE FOR A PERFECT SENSITIVITY AND PROTECTION.



THE FIRST GPS TIMERS IN THE WORLD COMPLETELY
RIDER AND PC INDEPENDENT "
FOR THE POSITIONING OF THE GOAL AND THE INTERMEDIATES.


IF YOU DO NOT WANT TO USE YOUR PC OR PRESS BUTTONS ON THE CIRCUIT, THE SAFD-2 FUNCTION (Starlane Automatic Finish line Detection) WILL AUTOMATICALLY DIVE THE CIRCUIT AFTER THE FIRST 2 ROUND ROUTES, ALLOWING YOU TO SEE YOUR TIMES AND INTERTEMPES ALREADY FROM THE FIRST SESSION WITHOUT INTERVIEWING ON THE CHRONOMETER.


With the SEPLA function (Starlane Enhanced Precision Laptiming Algorithm): a lap time calculation algorithm that allows the highest levels of accuracy.



INDICATION OF THE FOLD ANGLE


STEALTH GPS-4 Lite supports the new features of the Inertial Pack
can be activated from the site at any time as an additional option.

With the Inertial Pack the calculation and indication functions of the BEND ANGLE and the AC are activatedLATERAL AND LONGITUDINAL CELERATIONS in G.
The DigiraceMMX analysis software will therefore also show the acceleration and bend angle graphs (if you have also upgraded from Lite version to Full version).br />

The system calculates the bending angle relative to the axis (B) passing through the center of gravity
of the bike + driver set, therefore also considering the position of the pilot.

Fold angle is calculated by a high precision algorithm developed by Starlane
and does not require the installation of sensors on the vehicle.
Unlike other systems, it also allows the correct alignment of the angle data
and acceleration with instantaneous position on the circuit.



The bend angle can be displayed on the appropriate screen
which indicates the current angle and the maximum degrees reached in the last curve to the right and to the left.



STEALTH GPS-4 LITE allows the download of the times and speeds of each lap directly on your USB key, this solution makes it possible to use it without the need to take the computer on the track.
The Digirace-MMX software will automatically recognize your USB stick and downloaded sessions.

If updated to the Full version it can be connected to the optional CAN BUS expansion module which allows acquisition from external sensors (eg accelerator, gear, RPM, etc.), thus transforming the vochronometer in a real data acquisition system.



THE CHARACTERISTICS OF STEALTH GPS-4 LITE

WARNING: THE LITE VERSION DOES NOT ACQUIRE THE TRAJECTORIES AND DOES NOT MANAGE THE OPTIONAL RID MODULES UNTIL IT IS UPGRADED TO THE FULL VERSION.


1) GPS + GLONASS DOUBLE CONSTELLATION RECEIVER AND INTEGRATED ANTENNA IN THE INSTRUMENT:
The shock-resistant ABS body of STEALTH GPS-4 LITE houses the new double-constellation receiver that uses the satellites of the American GPS system and the Russian GLONASS system in symbiosis. This solution greatly increases the precision thanks to the very large number of satellites used to determine the instantaneous position, speed and lap time.

2) YOU CAN SAY GOODBYE TO THE DIFFERENT INFRARED TRANSMITTERS ON THE BOX WALL:
the use of the GPS + GLONASS system for the recording of lap time makes STEALTH GPS-4 LITE totally autonomous without the need for references on the track such as the transmitters used by the old generation systems based on infrared.
It then becomes much easier, without the hassle of positioning the transmitter with the inconvenient battery to recharge and the risk of forgetting it on the wall or suffering the theft.

3) GOAL MANAGEMENT AND 3 INTERMEDIATE:
It is possible to set the coordinates of 4 goals (main finish line + 3 optional intermediates), on passage toevery milestone and intermediate STEALTH GPS-4 LITE indicates the relative travel time and memorizes its value, it is therefore possible to quickly evaluate its performance even in parts of the track far from the main straight, which would be expensive and inconvenient to carry out with any other type of stopwatch.

4) INDICATION OF REACHABLE IDEAL TIME:
thanks to the intermediates management STEALTH GPS-4 LITE calculates for each session the time ideally reachable by the pilot, this function is obtained by adding the best sector times. It is thus possible to understand what would have been the lap time obtainable if no traffic had been found at a particular point on the track or if a lap had been made to the maximum of its absolute possibilities.

5) "BEST LAP" DOUBLE FUNCTION LED:
the "BEST LAP" LED lights up with respect to the previous lap and flashes if the lap ended is the best of the session, this solution allows you to give the pilot the information necessary for the performance without distracting him.
If the milestones have been set, the LED is also activated when passing through each intermediate, it is therefore a very convenient tool to understand, without being distracted, if it is improving with respect to the same intermediate time of the previous lap or if the best split time of the session.

6) GPS SPEED DETECTION:
the advantage of using the systemema GPS + GLONASS also translates into the possibility of detecting the speed of the vehicle with extreme precision and without the need to install sensors on the vehicle, it does not require any setting by the user and, above all, the detection is always accurate and not distorted by the 'inclination of the vehicle or possible wheel skating.

7) DOUBLE HOUR METER FOR PERFECT VEHICLE PERIOD MAINTENANCE:
STEALTH GPS-4 LITE also has two hour counters that can be reset separately to respect the periodic maintenance of the vehicle, the hour-meters are activated to receive the speed signal by GPS + GLONASS, this solution makes the hour-meters work even without having any connection to the wiring of the vehicle.

8) DISCHARGE TIMES AND SPEED ON USB KEY:
STEALTH GPS-4 LITE is equipped with a wired USB socket, which can be easily positioned in the motorcycle fairing, where any USB flash memory can be inserted.
This solution makes the system totally unattached to the computer, at the end of the day it will be enough to insert the USB key and STEALTH GPS-4 LITE will download the acquired times and the speeds of each lap which can then be analyzed directly with the Digirace-MMX software.


9) 999 REVOLUTION MEMORY WITH AUTOMATIC MANAGEMENT OF 99 TEST SESSIONS:
STEALTH GPS-4 LITE automatically creates a new session every time you enter the track, so you can calmly analyze the memory times.orised in the various sessions.
The date and time of each session are memorized and for each lap the relative total time, intermediate and maximum speed are stored.

10) CYCLICAL MANAGEMENT OF MEMORY:
With STEALTH GPS-4 LITE you will never find yourself in the condition of out of memory, in fact, to allow an easy continuous use, it manages the available space automatically canceling the oldest sessions when the memory is almost exhausted.

11) MEMORIZATION OF THE COORDINATES OF GOALS OF THE MOST USED TRACKS:
it is possible to store the coordinates acquired for the finish line of the tracks on which you are training most frequently, up to 16 circuits can be stored, so you can easily recall the finish line of the current track without having to reset it each time.

12) STEALTH GPS-4 LITE IS EQUIPPED WITH A BACKLIT GRAPHIC DISPLAY:
this solution has allowed the development of a software of unparalleled simplicity and immediacy in the analysis of the stored data and in the setting of the functions desired by the user. The display is of the Transflective type, a feature that allows maximum visibility even in the sun with the backlight off.

13) EXTERNAL FEEDING:
powered by a 12V battery of the vehicle or with 9V accessories or external accessory batteries. STEALTH GPS-4 LITE is equipped with powerful energy-saving featuresand user-settable auto-shutdown to maximize battery performance. It is supplied with a specific extension with eyelets for connection to the battery and a connector on the side of the instrument that allows for quick disconnection.

14) WATER RESISTANT:
STEALTH GPS-4 LITE is water resistant and can therefore be used even in the rain.


The DigiRace-MMX analysis software can be downloaded for free below ...


Specifications:
Automatic chronometer with 1 / 100th of a second resolution
GPS + GLONASS 10Hz dual constellation detection system with aeronautical algorithms
Automatic finish and intermediate positioning function without any user intervention (SAFD-2)
Calculation of the Ideal Ideal Time
Calculation and display of 3 intermediates
Speed indication from GPS
Max speed reading = 350 Km / h or 218 Mph
Double hour meter for engine maintenance
Unloading times and maximum speeds of each lap on a USB stick
Memory of 999 laps that can be managed in 99 sessions
Cyclic memory management with automatic deletion of older sessions
Speed memorization for each lap
Speed indication in Km / h or Mph
Settable auto-off
Adjustable energy saving functions
Graphic backlit display 122x32
Waterproof
Dimensioni: larg. 90 mm - alt. 45 mm - prof. 18 mm
Power supply: 12V from the vehicle battery or accessory 9V battery holder or accessory battery pack
Universal installation
Optional Inertial Pack functionality with Bend Angle indication that can be activated online
Upgradable online to the full version
DigiRace-MMX software downloadable from the site
Destination: motorcycle - scooter


Stealth GPS-4 Lite Package Contents (COD. CSTHGPS4LT):
N ° 1 STEALTH GPS-4 LITE instrument
N ° 1 Elastic Support Kit
N ° 1 Velcro fastening kit Dual Lock Sticker
N ° 1 12V battery power cable of the vehicle
N ° 2 Plastic clamps for USB fastening
N ° 1 User's Manual
