220A88510 KIT 2 CALIPER BREMBO RACING RADIAL M50 + 4 PADS DISTANCE 100 MM
  • 220A88510 KIT 2 CALIPER BREMBO RACING RADIAL M50 + 4 PADS DISTANCE 100 MM
  • 220A88510 KIT 2 CALIPER BREMBO RACING RADIAL M50 + 4 PADS DISTANCE 100 MM
  • 220A88510 KIT 2 CALIPER BREMBO RACING RADIAL M50 + 4 PADS DISTANCE 100 MM
  • 220A88510 KIT 2 CALIPER BREMBO RACING RADIAL M50 + 4 PADS DISTANCE 100 MM

KIT 2 CALIPER BREMBO RACING RADIAL M50 + 4 PADS DISTANCE 100 MM

Brembo Racing

€841.80
€648.19 Save 23%
Tax included

* NON-EU customers and EU VAT Companies can save VAT, contact us after checkeout

220A88510 (ID 95474)
Quantity
Last items in stock

KIT 2 BRUSHES RADIAL M50 M50 BREMBO RACING + 4 PADS INTERASSE 100 MM

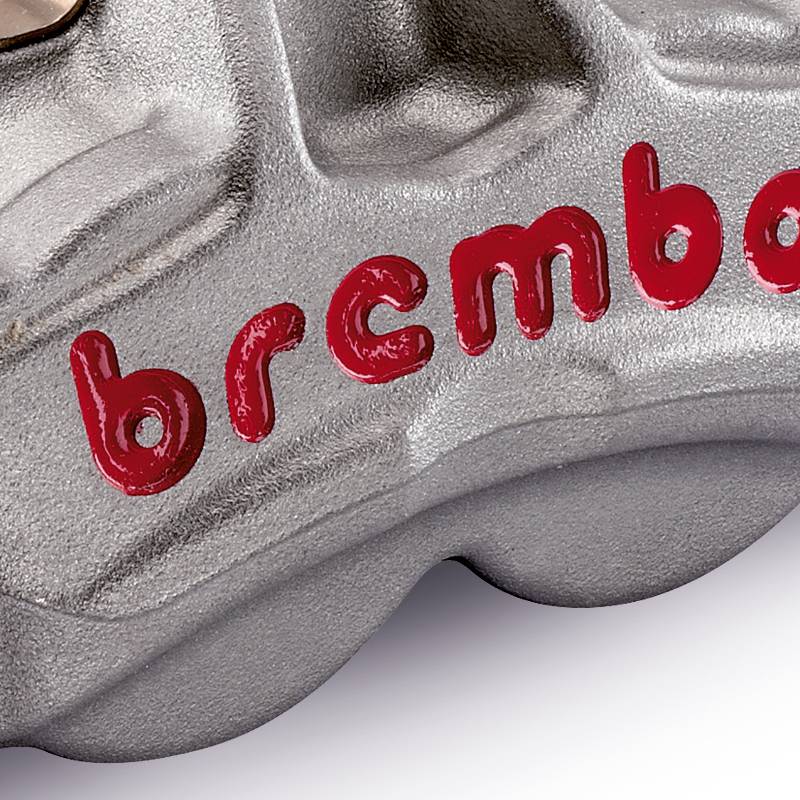

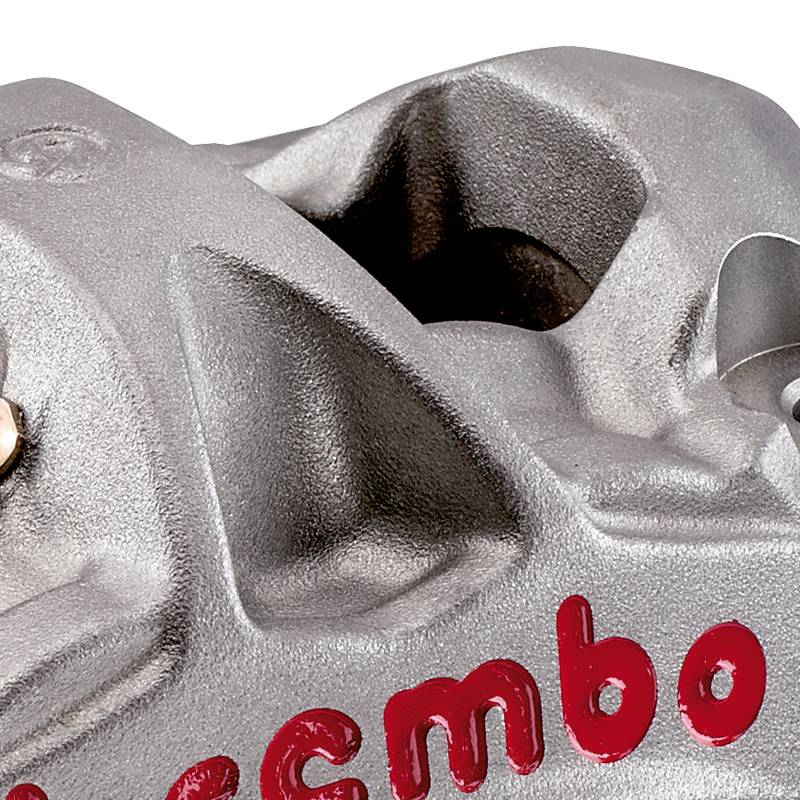

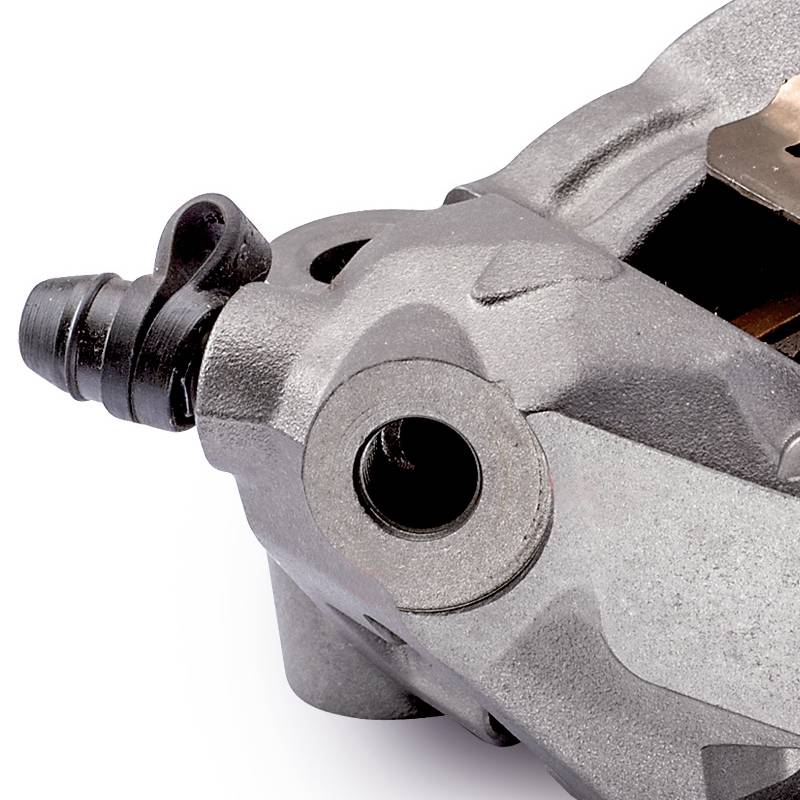

In designing and manufacturing this monoblock caliper special attention was paid to the hydraulics and the shape of the caliper body, both subject to a careful technical improvement work. With a typically racing design, the caliper contains 4 pistons with a diameter of 30 mm. The compact body of the caliper, thanks to a careful refinement work, is able to guarantee the excellent power and modulation characteristics typical of Brembo calipers.

This clamp is the result of the use of sophisticated calculation programs of "topological optimization" which, thanks to iterative procedures, allow the removal of material from the areas of the clamp where it is not needed, so as to get as close as possible to the optimal structure, capable of to combine maximum rigidity with maximum lightness.

The caliper was presented for the first time at EICMA 2011 as the original equipement of the Ducati 1199 Panigale. In the M50 code, the letter M stands for monoblock, a technology successfully introduced in 1994 by Brembo in MotoGP, which allows the caliper body to be made from a single piece of cast aluminum, while the number 50 is a tribute to the years of activity of the company.

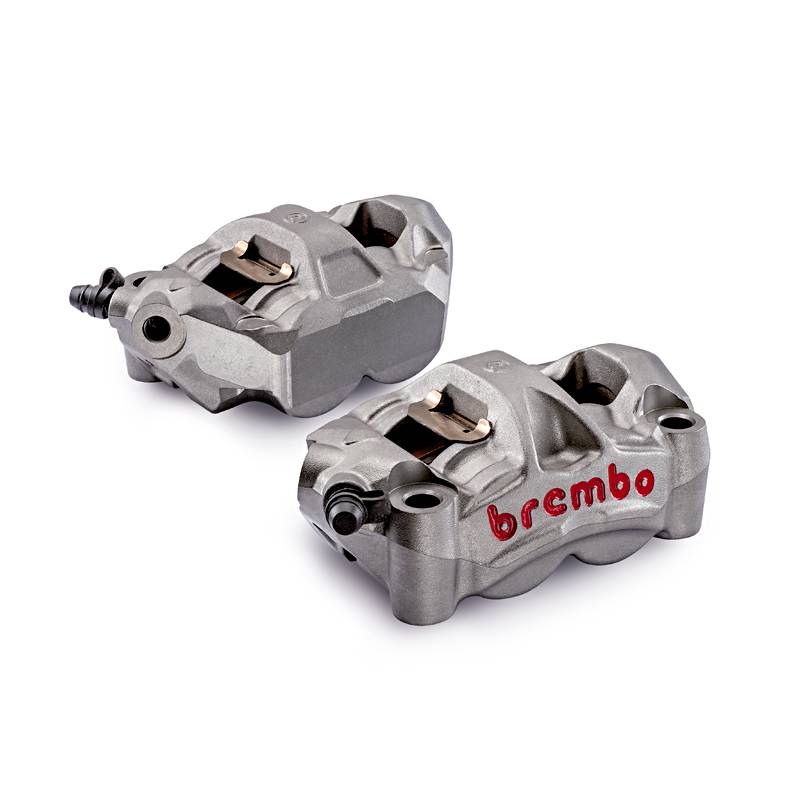

The product, supplied in kit form with 2 clamps, is equipped with sintered pads, which represent the top technology available on the market today.

TECHNICAL SPECIFICATIONS

FRONT position

MONOBLOCK caliper body

Wheelbase 100 mm

Pistons Ø 30 mm

Number of pistons 4

H. 34 mm brake band

Material Cast aluminum

Surface protection Anodic Titanium Oxidation

Aluminum piston material

Weight without pads (gr) 700

Tablets included in the supply yes

Offset (mm) 30

Note Kit consisting of 2 clamps + 4 pads

Note

Pliers not compatible with ABS system

Not compatible with low-end discs

APPLICATIONS

APRILIA 1000 RSV DREAM 2004-2008

APRILIA 1000 RSV FACTORY 2004-2008

APRILIA 1000 RSV4 APRC R 2011-2012

APRILIA 1000 RSV4 APRC R ABS 2013-2014

APRILIA 1000 RSV4 APRC SE 2011-2012

APRILIA 1000 RSV4 APRC STD 2011-2012

APRILIA 1000 RSV4 FACTORY 2009-2010

APRILIA 1000 RSV4 FACTORY APRC ABS 2013-2014

APRILIA 1000 RSV4 R 2009-2010

APRILIA 1000 RSV4 RF 2015-2019

APRILIA 1000 RSV4 RR 2015-2019

APRILIA 1000 RSV4 RR RACER PACK 2015

APRILIA 1000 RSV4 SBK RACING 2009-2010

APRILIA 1000 TUONO R 2002-2010

APRILIA 1000 TUONO R FACTORY 2006-2010

APRILIA 1000 TUONO V4 R 2011-2015

APRILIA 1000 TUONO V4 R APRC 2011-2013

APRILIA 1000 TUONO V4 R APRC ABS 2013-2015

APRILIA 1100 RSV4 FACTORY 2019

APRILIA 1100 TUONO V4 FACTORY 2015-2019

APRILIA 1100 TUONO V4 RR 2015-2019

APRILIA 1200 DORSODURO 2010-2011

APRILIA 750 DORSODURO FACTORY 2010-2013

APRILIA 750 DORSODURO FACTORY ABS 2010-2013

BENELLI 1130 TNT CAFE' RACER 2011-2014

BENELLI 1130 TNT CENTURY RACER 2011-2014

BENELLI 1130 TNT R 2011-2014

BENELLI 1130 TNT R160 2010-2014

BENELLI 1130 TNT SPORT 2004-2006

BENELLI 1130 TNT TITANIUM 2005-2007

BENELLI 1130 TORNADO TRE 2007

BENELLI 1130 TRE K 2011-2012

BENELLI 900 TNT 899 2012-2014

BENELLI 900 TNT 899 CENTURY RACER 2011-2014

BENELLI 900 TNT CAFE' RACER 2010

BENELLI 900 TORNADO RS 2004-2005

BENELLI 900 TRE-K 899 2011

BIMOTA 1000 BB3 2014-2015

BIMOTA 1078 DB10 BIMOTARD 2011-2015

BIMOTA 1078 DB5 2011-2015

BIMOTA 1100 DB6 2011-2013

BIMOTA 1100 DB6 R DELIRIO 2011-2013

BIMOTA 1100 DB7 2008-2012

BIMOTA 1100 TESI 3D 2011-2013

BIMOTA 1198 DB8 2014-2017

BIMOTA 1198 DB8 SP 2010-2013

BIMOTA 1198 DB9 BRIVIDO 2012-2013

BIMOTA 1198 DB9 BRIVIDO S 2012-2013

BMW 1000 HP4 2013-2014

BMW 1000 S 1000 R 2013-2019

BMW 1000 S 1000 R (FORGED WHEELS) 2017-2019

BMW 1000 S 1000 RR 2009-2019

BMW 1000 S 1000 RR (FORGED WHEELS) 2015-2018

BMW 1000 S 1000 XR 2015-2019

BMW 1170 HP2 SPORT 2008-2011

DUCATI 1000 PANIGALE V4R 2019

DUCATI 1098 1098 2006-2009

DUCATI 1098 1098 S 2006-2011

DUCATI 1098 1098 S TRICOLORE 2007

DUCATI 1100 HYPERMOTARD 2007-2009

DUCATI 1100 HYPERMOTARD EVO 2010-2012

DUCATI 1100 HYPERMOTARD EVO SP 2010-2012

DUCATI 1100 HYPERMOTARD S 2007-2009

DUCATI 1100 STREETFIGHTER 2009-2011

DUCATI 1100 STREETFIGHTER S 2009-2013

DUCATI 1103 PANIGALE V4 2018-2019

DUCATI 1103 PANIGALE V4 S 2018-2019

DUCATI 1103 PANIGALE V4 S CORSE 2019

DUCATI 1103 PANIGALE V4 SPECIALE 2018-2019

DUCATI 1198 1098 R 2007-2011

DUCATI 1198 1098 R BAYLISS 2009-2011

DUCATI 1198 1198 2009-2012

DUCATI 1198 1198 R CORSE SPECIAL EDITION 2010-2012

DUCATI 1198 1198 S 2008-2012

DUCATI 1198 1198 S CORSE SPECIAL EDITION 2010-2012

DUCATI 1198 1198 SP 2011-2012

DUCATI 1199 PANIGALE 2012-2013

DUCATI 1199 PANIGALE ABS 2013-2014

DUCATI 1199 PANIGALE R 2013-2017

DUCATI 1199 PANIGALE S 2013-2014

DUCATI 1199 PANIGALE S ABS 2013-2014

DUCATI 1199 PANIGALE S TRICOLORE 2012-2014

DUCATI 1199 SUPERLEGGERA 2014

DUCATI 1200 MONSTER 2014-2019

DUCATI 1200 MONSTER R 2016-2018

DUCATI 1200 MONSTER S 2014-2018

DUCATI 1200 MONSTER S STRIPE 2015-2016

DUCATI 1299 PANIGALE 2015-2017

DUCATI 1299 PANIGALE R FINAL EDITION 2017-2018

DUCATI 1299 PANIGALE S 2015-2017

DUCATI 1299 PANIGALE S ANNIVERSARIO 2016-2017

DUCATI 1299 SUPERLEGGERA 2017

DUCATI 749 749 R 2003-2007

DUCATI 821 HYPERMOTARD 2013-2015

DUCATI 821 HYPERMOTARD SP 2013-2015

DUCATI 821 HYPERSTRADA 2013-2015

DUCATI 848 848 2007-2013

DUCATI 848 848 EVO 2010-2013

DUCATI 848 848 EVO CORSE SPECIAL EDITION 2011-2013

DUCATI 848 STREETFIGHTER 2012-2015

DUCATI 899 PANIGALE 2014-2015

DUCATI 939 HYPERMOTARD 2016-2018

DUCATI 939 HYPERMOTARD SP 2016-2018

DUCATI 939 HYPERSTRADA 2016-2018

DUCATI 939 SUPERSPORT 2017-2019

DUCATI 939 SUPERSPORT S 2017-2019

DUCATI 959 PANIGALE 2016-2018

DUCATI 959 PANIGALE CORSE 2018

DUCATI 990 DESMODESICI RR 2007-2009

DUCATI 998 MONSTER S4R Testastretta 2007-2008

DUCATI 998 MONSTER S4RS Testastretta 2006-2008

DUCATI 999 999 2003-2007

DUCATI 999 999 R 2003-2006

DUCATI 999 999 R XEROX 2006

DUCATI 999 999 S 2005-2006

ENERGICA 11.7 EGO 2015-2018

ENERGICA 11.7 EVA 2015-2018

ENERGICA 11.7 EVA ESSEESSE 9 2018

KAWASAKI 1000 H2 NINJA 2015-2019

KAWASAKI 1000 H2 NINJA CARBON 2017-2019

KAWASAKI 1000 H2 R NINJA 2015-2018

KAWASAKI 1000 Z R 2017-2019

KAWASAKI 1000 ZX-10R ABS 2016-2019

KAWASAKI 1000 ZX-10R ABS KRT REPLICA 2016-2018

KAWASAKI 1000 ZX-10R ABS SE 2018-2019

KAWASAKI 1000 ZX-10R ABS WINTER EDITION 2016

KAWASAKI 1000 ZX-10RR 2017-2019

KAWASAKI 1400 ZZR PERFORMANCE SPORT ABS 2016-2019

KTM 1050 ADVENTURE ABS 2015-2016

KTM 1190 ADVENTURE ABS 2013-2016

KTM 1190 ADVENTURE R ABS 2013-2016

KTM 1190 RC8 2008-2011

KTM 1190 RC8 R 2009-2015

KTM 1190 RC8 R TRACK 2011-2013

KTM 1290 SUPER DUKE GT 2016-2019

KTM 1290 SUPER DUKE R 2014-2019

KTM 1290 SUPER DUKE R SE 2016-2017

KTM 950 SUPERMOTO 2005-2008

KTM 950 SUPERMOTO R 2007

KTM 990 SUPER DUKE 2005-2012

KTM 990 SUPER DUKE R 2007-2013

KTM 990 SUPERMOTO 2008-2010

KTM 990 SUPERMOTO R 2009-2011

KTM 990 SUPERMOTO R ABS 2012-2013

KTM 990 SUPERMOTO T 2009-2010

KTM 990 SUPERMOTO T ABS 2011-2013

MOTO GUZZI 1200 MGS-01 CORSA 2007-2011

MV AGUSTA 1000 F4 2013-2016

MV AGUSTA 1000 F4 312R 2007-2008

MV AGUSTA 1000 F4 FRECCE TRICOLORE 2010-2012

MV AGUSTA 1000 F4 R 2006-2016

MV AGUSTA 1000 F4 RC 2015-2018

MV AGUSTA 1000 F4 RC LH44 2018

MV AGUSTA 1000 F4 RR 2010-2016

MV AGUSTA 1000 F4 RR CORSA CORTA 2012

MV AGUSTA 1000 F4 SENNA 2004-2006

MV AGUSTA 1078 BRUTALE RR 2008-2009

MV AGUSTA 1078 F4 312RR 2007-2009

MV AGUSTA 1078 F4 CLAUDIO CASTIGLIONI 2007

MV AGUSTA 1090 BRUTALE 2013-2015

MV AGUSTA 1090 BRUTALE CORSA 2013-2015

MV AGUSTA 1090 BRUTALE R 2012-2015

MV AGUSTA 1090 BRUTALE RR 2010-2016

MV AGUSTA 675 BRUTALE 2013-2017

MV AGUSTA 675 F3 2011-2019

MV AGUSTA 675 F3 ORO 2012-2013

MV AGUSTA 675 F3 RC 2015-2019

MV AGUSTA 800 BRUTALE 2013-2018

MV AGUSTA 800 BRUTALE RC 2018-2019

MV AGUSTA 800 BRUTALE RR 2015

MV AGUSTA 800 BRUTALE RR PIRELLI 2018-2019

MV AGUSTA 800 DRAGSTER 2014-2016

MV AGUSTA 800 DRAGSTER RC 2017-2019

MV AGUSTA 800 DRAGSTER RR 2015-2019

MV AGUSTA 800 DRAGSTER RR LH44 2015-2016

MV AGUSTA 800 F3 2013-2019

MV AGUSTA 800 F3 AGO 2014-2015

MV AGUSTA 800 F3 ORO 2012-2013

MV AGUSTA 800 F3 RC 2015-2019

MV AGUSTA 800 RIVALE 2013-2018

MV AGUSTA 800 RVS#1 2018-2019

MV AGUSTA 800 STRADALE 2015

MV AGUSTA 800 TURISMO VELOCE 2015-2019

MV AGUSTA 800 TURISMO VELOCE LUSSO 2015-2019

MV AGUSTA 800 TURISMO VELOCE LUSSO SCS 2018-2019

MV AGUSTA 800 TURISMO VELOCE RC 2017-2019

MV AGUSTA 910 BRUTALE R 2005-2008

MV AGUSTA 920 BRUTALE 2010-2012

MV AGUSTA 989 BRUTALE R 2008-2009

MV AGUSTA 990 BRUTALE R 2010-2012

PINZE FRENO BREMBO RACING RADIALE ANTERIORE 4 PISTONI 100 mm INTERASSE MONOBLOCCO FUSA

TRIUMPH 1050 SPEED TRIPLE 2007-2016

TRIUMPH 1050 SPEED TRIPLE 94 ABS 2015-2016

TRIUMPH 1050 SPEED TRIPLE ABS 2007-2016

TRIUMPH 1050 SPEED TRIPLE R 94 ABS 2015-2016

TRIUMPH 1050 SPEED TRIPLE R ABS 2012-2017

TRIUMPH 1050 SPEED TRIPLE RS ABS 2018-2019

TRIUMPH 1050 SPEED TRIPLE S ABS 2017

TRIUMPH 1200 TRUXTON R 2016-2017

TRIUMPH 675 DAYTONA R 2011-2012

TRIUMPH 675 DAYTONA R ABS 2013-2017

TRIUMPH 765 STREET TRIPLE R 2017-2019

TRIUMPH 765 STREET TRIPLE RS 2017-2019
