Kit 2 M50 Brembo Racing Radial Brake Calipers + 4 Pads Wheelbase 100 mm APRILIA DORSODURO 1200 2010-2011

You can save 12% on this order and pay €718.33 if you join Sixrace Pro

Brembo Racing

€910.41
€819.37 Save 10%
Tax included
220A88510 (ID 104969)
220A88510 Brembo APRILIA DORSODURO 1200 2010-2011
Quantity
Available

Kit 2 M50 Brembo Racing Radial Brake Calipers + 4 Pads Wheelbase 100 mm

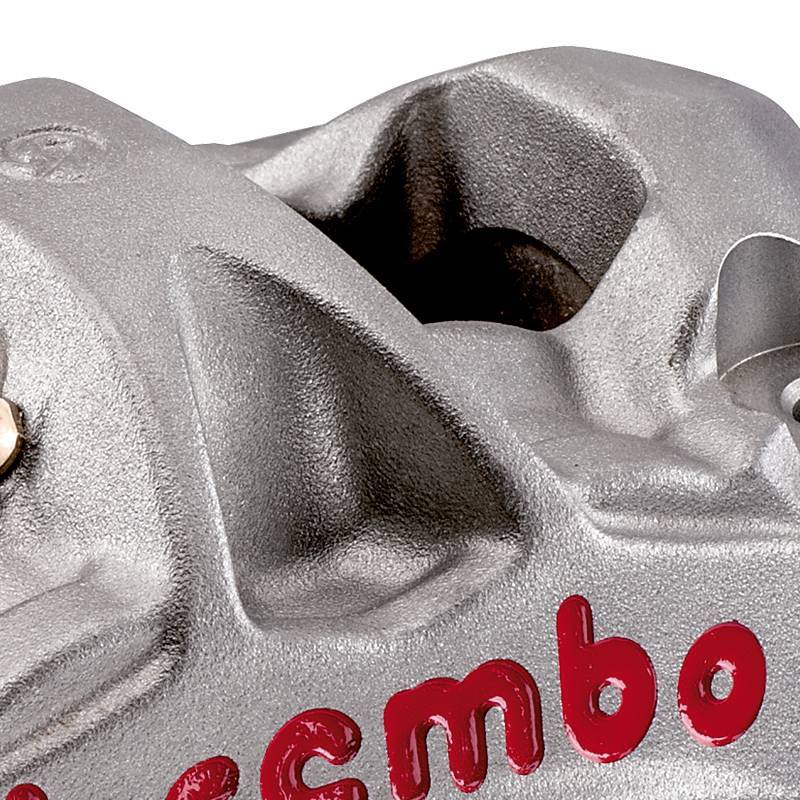

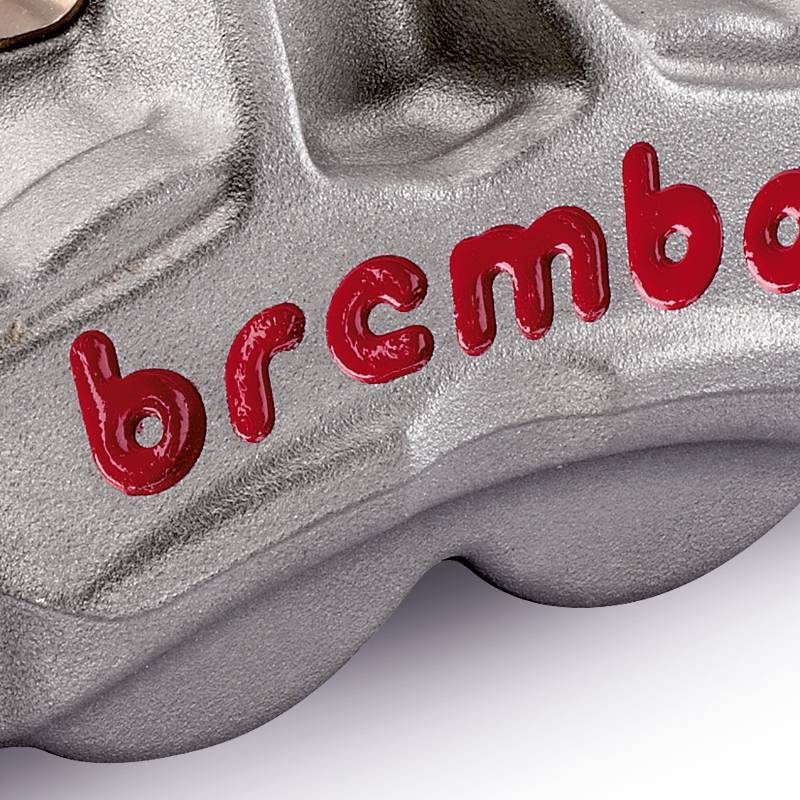

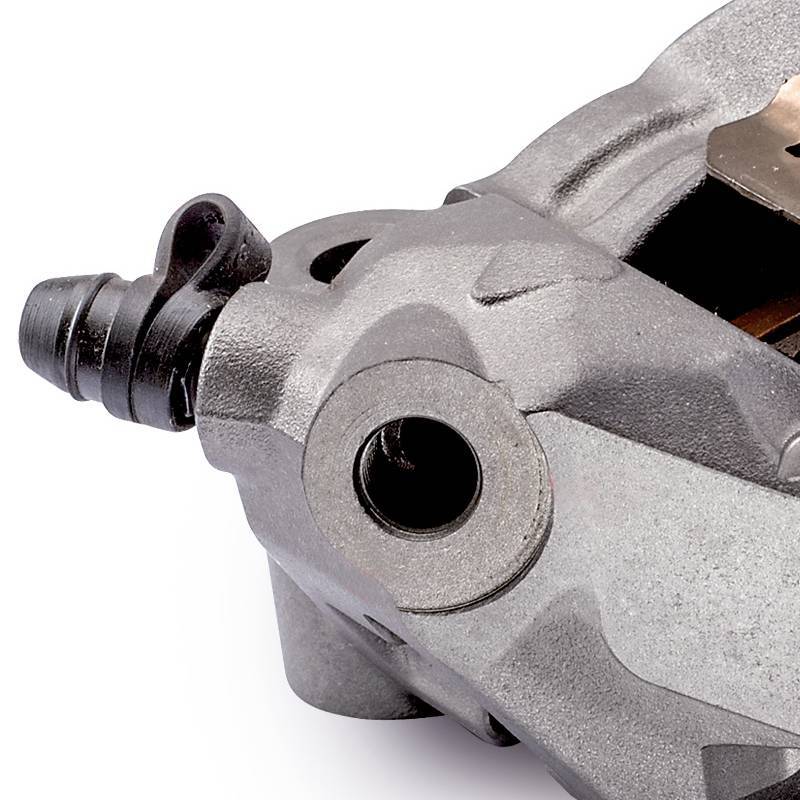

In designing and making this monoblock caliper we decided to give the hydraulics and the caliper body shape particular attention, both of which were the focus of painstaking technical operations to perfect them. With its typically racing design the caliper houses four 30 mm diameter pistons. Thanks to careful refinement, the compact body of the caliper guarantees the excellent characteristics of power and modularity that are so typical of Brembo calipers. This caliper is the result of sophisticated “topological optimisation” calculation software which, thanks to an iteration process, allows material to be removed from the areas of the caliper where it is not needed in order to come as close as possible to the optimum structure, combining maximum stiffness with maximum lightness. This caliper was presented for the first time at EICMA 2011 as original equipment on the Ducati 1199 Panigale. In its name, M50, the letter M stands for monoblock, a technology which was successfully introduced by Brembo in MotoGP in 1994, which allows the caliper body to be derived from a single piece of cast aluminium, whereas the number 50 is a tribute to the number of years the company has been in business. The product, provided in a kit made up of 2 calipers and sintered brake pads which represent the absolute best quality available on the market today.

Caratteristiche

Position: FRONT
Caliper Body: MONOBLOCK
Ø Pistons mm: 30
Pistons Q.ty: 4
Disc height mm: 32-34
Material: Cast aluminium
Surface protection: Titanium anodic oxidation
Piston material Aluminium
Weight w/o pads (gr): 700
Mounted pads included: yes
Offset (mm): 30
Note: 2 calipers kit

Kit consisting of 2 calipers + 4 pads

Parts 120225579 SPRING PADS € 10.05 (excluding VAT)
05338752 BLEED SCREW € 5.41 (excluding VAT)
05150220 DUST CAP € 15.46 (excluding VAT)

Brembo Racing
220A88510 • 104969

Data sheet

Motorcycle brand
Aprilia
Motorcycle Model
DORSODURO
Cilindrata Moto
1200
