TTX Flow DV • Shock Absorber + Calibration
You can save 1% on this order and pay €1,783.40 if you join Sixrace Pro
OHLINS
€1,793.40
Tax included
TTXFLOWDV-CUSTOM-LINK (ID 179516)
Ohlins TTX Flow DV - For any bike equipped with LINK (PDS excluded)
Spring excluded
Including calibration on customized customer request

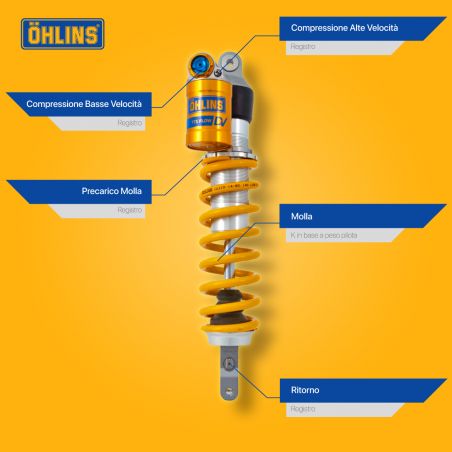

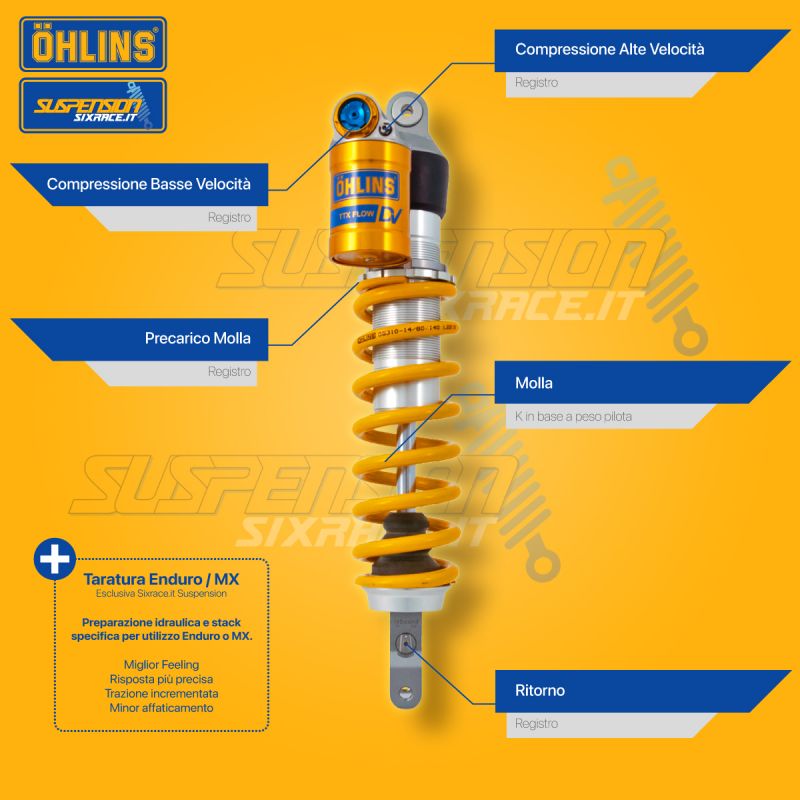

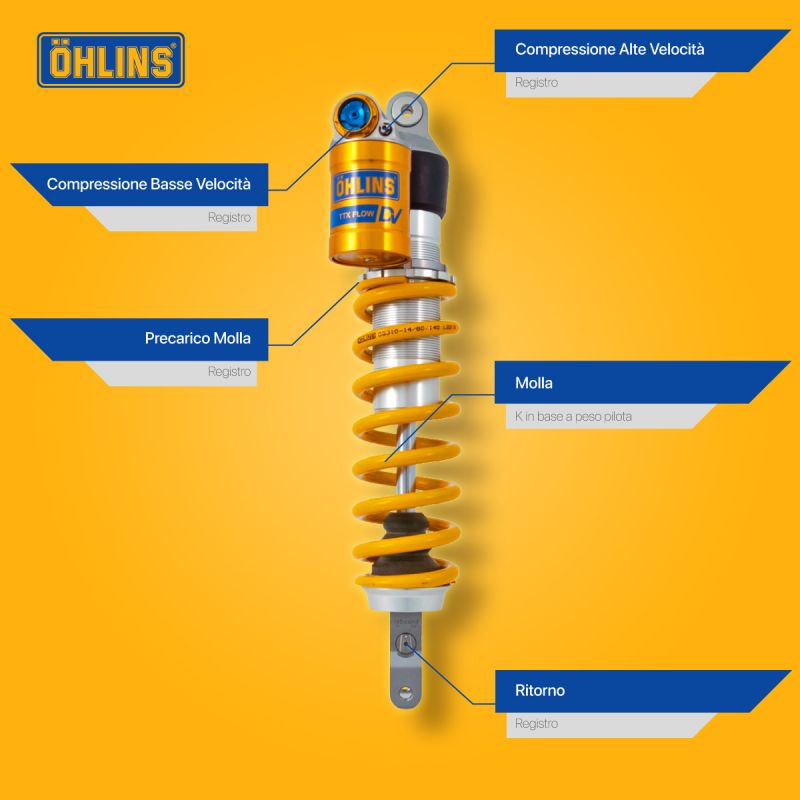

Ohlins TTX Flow DV 2022 shock absorber
The new Ohlins shock absorber for Enduro and Cross motorcycles in the 2021 version raises the performance level of a technically state-of-the-art product for the sector even higher! Ohlins has completely improved its TTX Flow DV rear shock absorber in this latest version to optimize traction and resistance to lunge, without sacrificing the driving comfort that only an Ohlins rear shock absorber equipped with TTX technology can give you! This shock absorber for enduro motorcycles represents the ultimate solution for every rider, every bike and every track! Thanks to the new high speed compression control valve of this Ohlins TTX Flow DV, it is now possible to independently adjust the damping of the shock absorber at low speeds (accelerations, braking potholes) from that at high speeds (landings, stones, rocks , woops). To improve the performance of this Ohlins TTX Flow DV, a lot of new features have been adopted in this 2021 version:
Ohlins Flow DV 2022 version news
Ohlins patented TTX technology New separate high-speed compression adjuster on the shock body of the TTX Flow DV New compression valve for optimal pressure control throughout the entire range of use of the Ohlins shock absorber New design of the rebound control needle (extension ) and stem oil passage Stronger 16 mm shaft on the TTX Flow DV 2021 version Ohlins patent pending FLOW valve dynamic control Great resistance to sinking for extreme use even on supercross jumps Easy spring change thanks to the design of the spring clip that blocks the Ohlins spring Wide range of optional springs for each rider weight Optional Ohlins preload adjuster
On which bikes does the Ohlins TTX Flow DV fit
This Ohlins TTX Flow DV shock absorber is compatible with all Enduro and Cross bikes equipped with LINK (Except PDS KTM ).
These are the bikes supported by this shock absorber:
Ohlins TTX FLow DV for Beta
Ohlins TTX FLow DV for KTM Cross
Ohlins TTX FLow DV for Gas Gas
Ohlins TTX FLow DV for Huswvarna
Ohlins TTX FLow DV for Sherco
Ohlins TTX FLow DV for Husaberg
Ohlins TTX FLow DV for Yamaha
Ohlins TTX FLow DV for Kawasaki
Ohlins TTX FLow DV for Suzuki
Ohlins TTX FLow DV for Honda
Calibration and Preparation
This shock absorber is sold with specific calibration. Each shock absorber is prepared before being shipped with a setting that suits the rider.
Carrying out a shock preparation and setting is essential as the standard factory configuration of each suspension is not optimized for the specific needs of the rider!
The result is that satisfactory suspension performance is not achieved using the stock setting.
What is the calibration?
Modification of the piston reeds that regulate the compression
Modification of the piston plates that regulate the rebound
The modification of the high speed control valve
The modification of the low speed control valve
Choosing the correct spring
Specific preparation
There are many factors that determine the correct preparation and calibration of a suspension for a specific use.
To provide a suspension that is truly suitable for the intended use, we at Sixrace have created a preparation sheet that every rider must fill in, this preparation sheet is used to determine and choose the most correct calibration for the customer's needs!

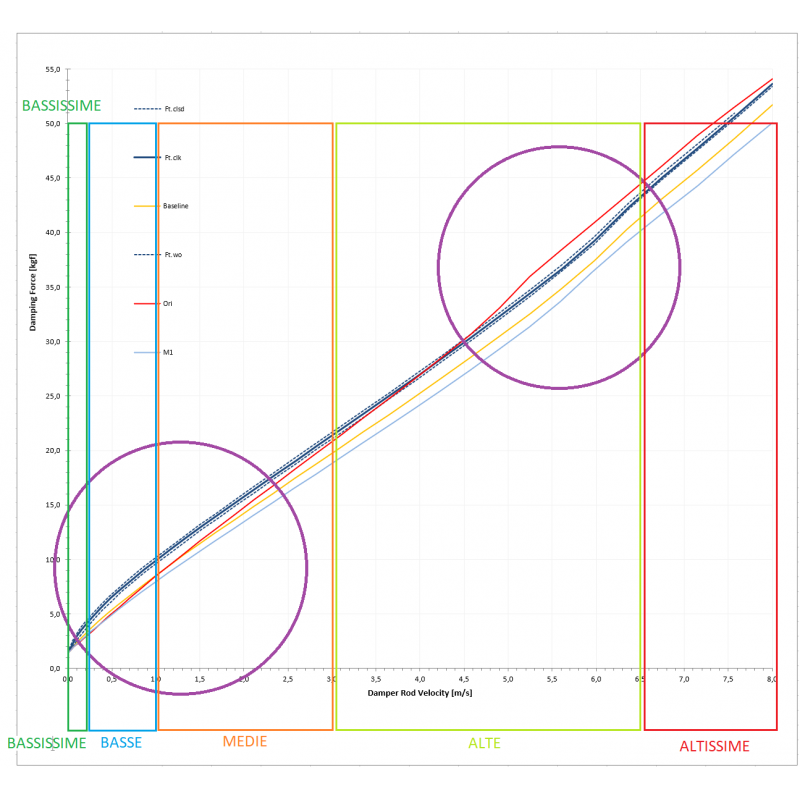

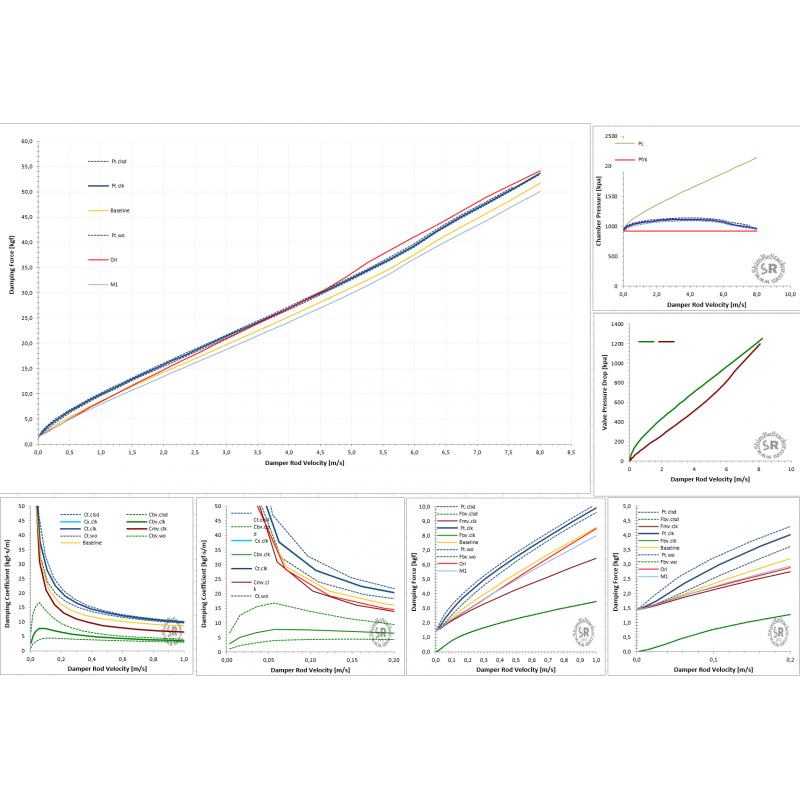

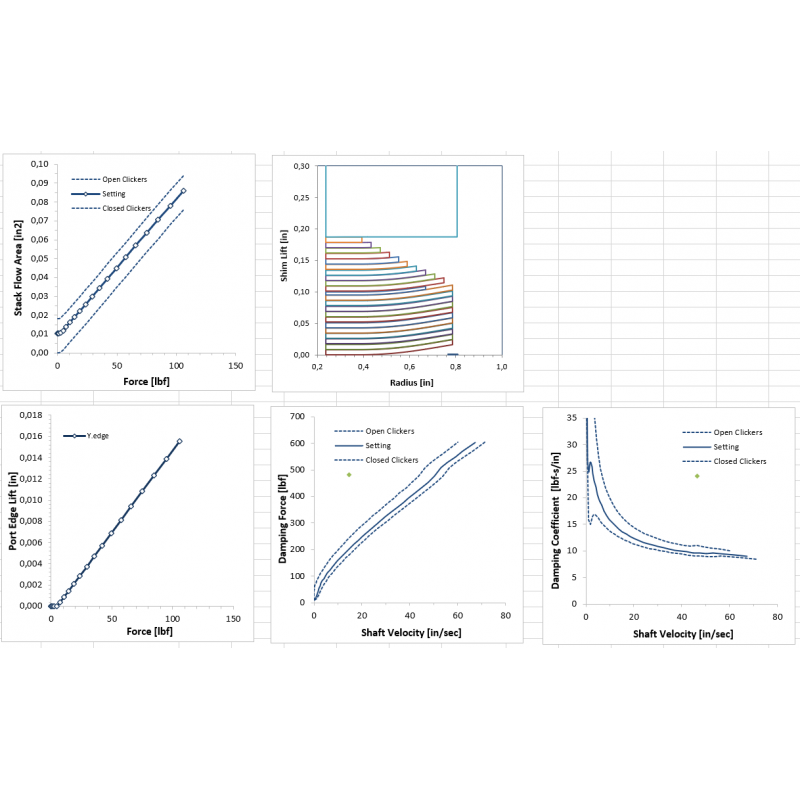

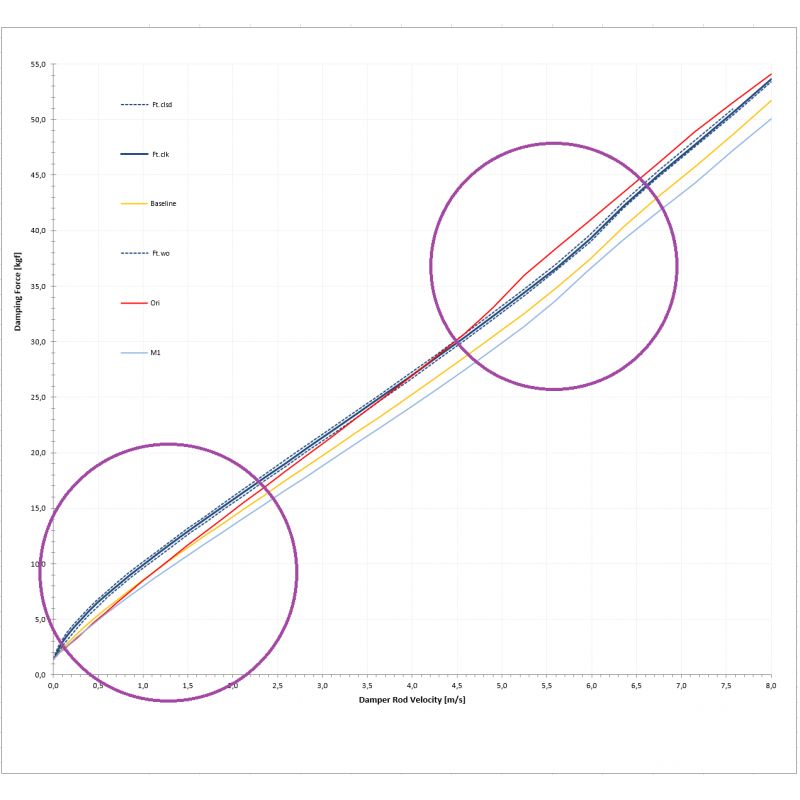

Each calibration is verified via analysis software and compared against the database of dyno test and road test (riders) to verify the accuracy of the data!
The Sixrace preparation sheet
The customization of the calibration of this Ohlins ttx flow dv shock absorber starts from the indications provided by the pilot divided into categories:
- Motorcycle
- Pilot
- Experience
- Ground
- feeling
Ohlins TTX Flow DV - For any bike equipped with LINK (PDS excluded)
Spring excluded
Including calibration on customized customer request
