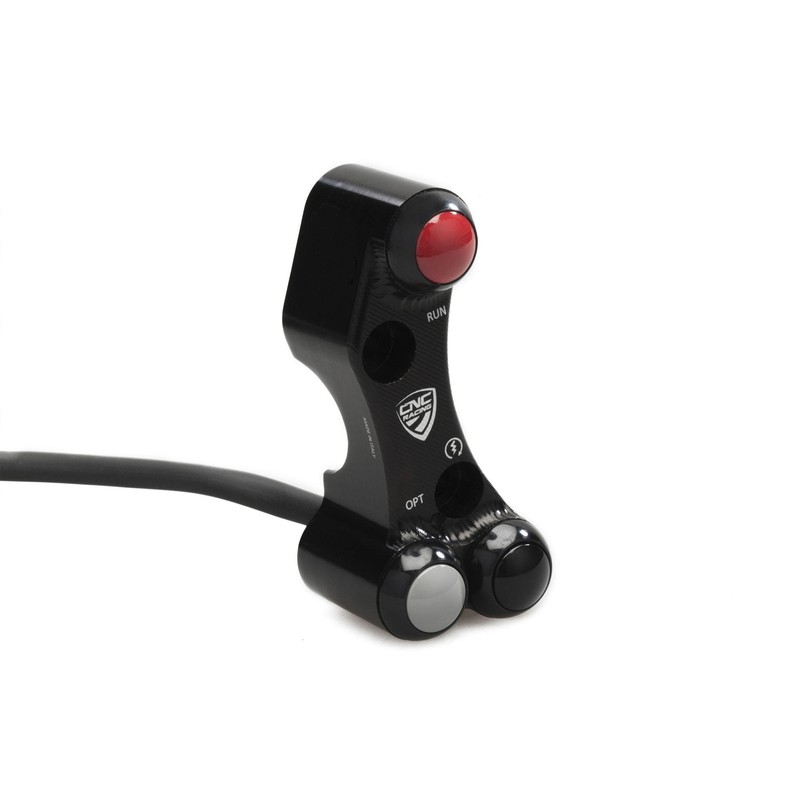

Right handlebar switch Brembo billet CNC and forged brake master cylinder Aprilia Rsv4 Factory 2009+ CNC Racing

Right handlebar switch for Brembo billet CNC and forged brake master cylinder .

The switch body is machined from full 7075 aluminium (Ergal) bars and has then undergone a hard black anodizing process that enhances processing with CNC machinery. All the buttons compliant with the IP67 military standard that certifies the switch itself is water resistant. The operation of all buttons is guaranteed by over 700,000 cycles.
Assembly is very easy and plug&play: just dismantle the original switch with the tools recommended by the Manufacturer and the master cylinder clamp; then fit the CNC Racing switch connecting the plug to the bike original cable. Nothing else is required and you can always go back to the original configuration without any modification.

Red button - ignition circuit activator / breaker
Black button - engine starter activation
Grey button -  activator / breaker option button multiple uses,can be customised by Customer

Fits on the following brake master cylinder Brembo:
10476060 19x20
10476070 19x18
10476075 19x18
10476080 16x18
10476082 16x18
10476085 16x18
10476087 16x18
XR01130 16x16
XR01170 19x16
XR01171 19x18
XR01172 19x20
XA7G710 19x18 GP
XA7G7G0 19x18 GP
