Complete Topend piston kit KTM 500 EXC 2020+ Replica Cast VERTEX

ALL PISTONS ARE SUPPLIED WITH PIN, RINGS, AND RINGS

Vertex pistons are entirely made in Italy and are original equipment for numerous European motorcycle and go-kart manufacturers, most notably KTM. Vertex offers tuning experts high-quality, technologically advanced pistons for any application in the motorcycle (on- and off-road), quad, ATV, go-kart, and outboard sectors, where maximum power is a must.

The rings assembled by Vertex on its pistons are manufactured in Japan to the highest industry standards by the OEM suppliers of major Japanese motorcycle manufacturers and are interchangeable with the original products.

Vertex is the number one choice for those who demand maximum performance in the world of motorsports, for any application.

Vertex piston pins are typically made of alloy steel with a case-hardening treatment. Standard pistons and components are interchangeable with the respective OEM products. All pistons are heat-treated to a T5 or T6 hardening cycle. To aid break-in and reduce wear, every Vertex piston features a molybdenum disulfide (MoS2) coating on the entire piston body.

Vertex Pistons for 4-Stroke Engines

Four-stroke engines have much higher cylinder pressures than two-stroke engines; pistons are generally produced by hot forging.

Vertex pistons for 4-stroke engines are hot forged from 2618 aircraft-grade alloy, a premium product that guarantees superior strength and durability. Vertex uses exclusive profiles and head shapes derived from team development to maximize power, torque, and overall performance, while reducing oil consumption and blow-by.

The latest-generation piston rings for 4-stroke engines are made of steel with nitriding or chrome plating treatments to increase wear resistance and improve lifespan.

Vertex 4-Stroke Top End Kit

For easier piston changes on modern off-road racing motorcycle engines. A single kit provides the essential components for a proper piston replacement.

For 4-stroke motorcycles, the kit includes a piston with piston pin retaining clips, piston pin, piston ring and oil scraper kit, a complete gasket kit (head gasket, crankcase gasket, exhaust gasket), a timing chain, a water inlet gasket (depending on the application), and valve seals.

What's in the kit?

• Piston
• Piston pin retaining clips
• Piston pin
• Piston ring and oil scraper kit
• Timing chain
• Water inlet gasket
• Valve seals
• Gasket kit (head, crankcase, exhaust, other)

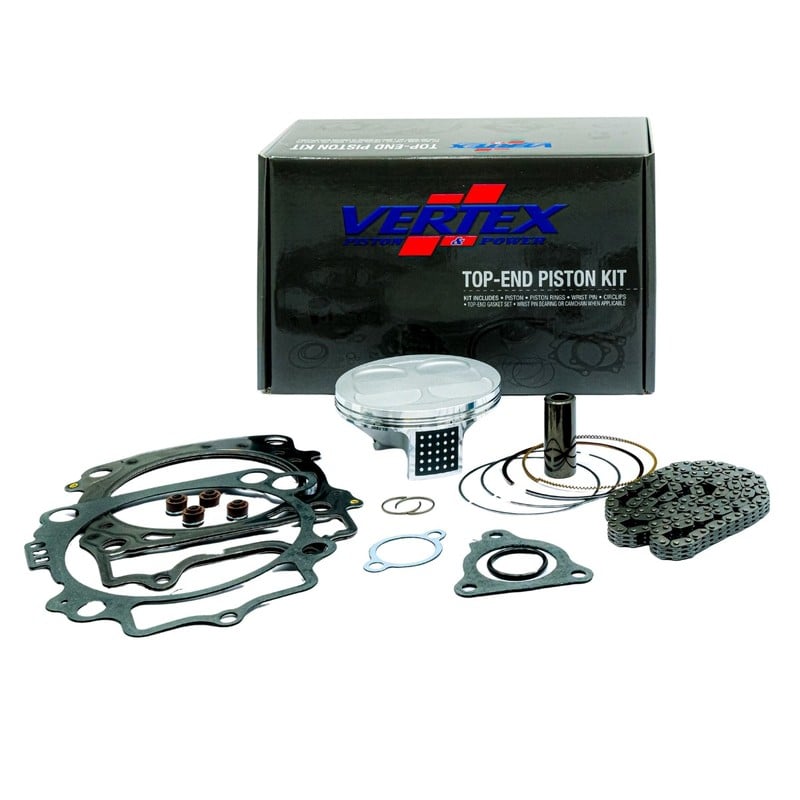

Kit image

Kit images are generic and for reference only. Each motorcycle receives the specific piston and parts for its application.

Piston type

Replica Cast

Piston cast in original shape

Cylinder diameter

95 mm

Compression ratio

11,8:1

Available in these piston diameters

Diameter selection

Each trailing letter in the code (A, B, C, D, …) identifies a different piston size, selectable via the Diameter attribute.
