Complete Topend piston kit KTM 300 Single Ring EXC 2017+ R Race VERTEX

ALL PISTONS ARE SUPPLIED WITH PIN, RINGS, AND RINGS

Vertex pistons are entirely made in Italy and are original equipment for numerous European motorcycle and go-kart manufacturers, most notably KTM. Vertex offers tuning experts high-quality, technologically advanced pistons for any application in the motorcycle (on- and off-road), quad, ATV, go-kart, and outboard sectors, where maximum power is a must.

The rings assembled by Vertex on its pistons are manufactured in Japan to the highest industry standards by the OEM suppliers of major Japanese motorcycle manufacturers and are interchangeable with the original products.

Vertex is the number one choice for those who demand maximum performance in the world of motorsports, for any application.

Vertex piston pins are typically made of alloy steel with a case-hardening treatment. Standard pistons and components are interchangeable with the respective OEM products. All pistons are heat-treated to a T5 or T6 hardening cycle. To aid break-in and reduce wear, every Vertex piston features a molybdenum disulfide (MoS2) coating on the entire piston body.

Vertex Pistons for 2-Stroke Engines

Because cast pistons can have a higher silicon content than forged pistons, and because cylinder pressures in 2-stroke engines are lower than in 4-stroke versions, cast pistons are ideal for this application.

Vertex 2-Stroke pistons are gravity-cast from an aluminum alloy with an 18% silicon content. The silicon content reduces thermal expansion, which causes the profile geometry to change after the piston reaches operating temperature.

Due to their reduced thermal expansion characteristics, Vertex 2-Stroke pistons can operate with tighter tolerances than forged pistons. This ensures a significant increase in power and durability, with the assurance of quieter operation and a failure-free lifespan.

The latest-generation piston rings for 2-stroke engines are made of steel with nitriding or chrome plating treatments to increase wear resistance and improve their lifespan.

Vertex 2-Stroke Top End Kit

To facilitate piston changes on modern off-road racing motorcycle engines. A single kit provides the essential components for proper piston replacement.

For 2-stroke motorcycles, the kit comes complete with a piston with the relevant piston pin retaining clips, piston pin, piston rings, needle bearing, and a complete top end gasket kit: base gasket, head gasket, and all other gaskets needed for the cylinder kit depending on the application.

What's in the kit?

• Piston
• Pin retaining clips
• Piston pin
• Piston rings
• Needle bearing
• Gasket kit (head, crankcase, other)

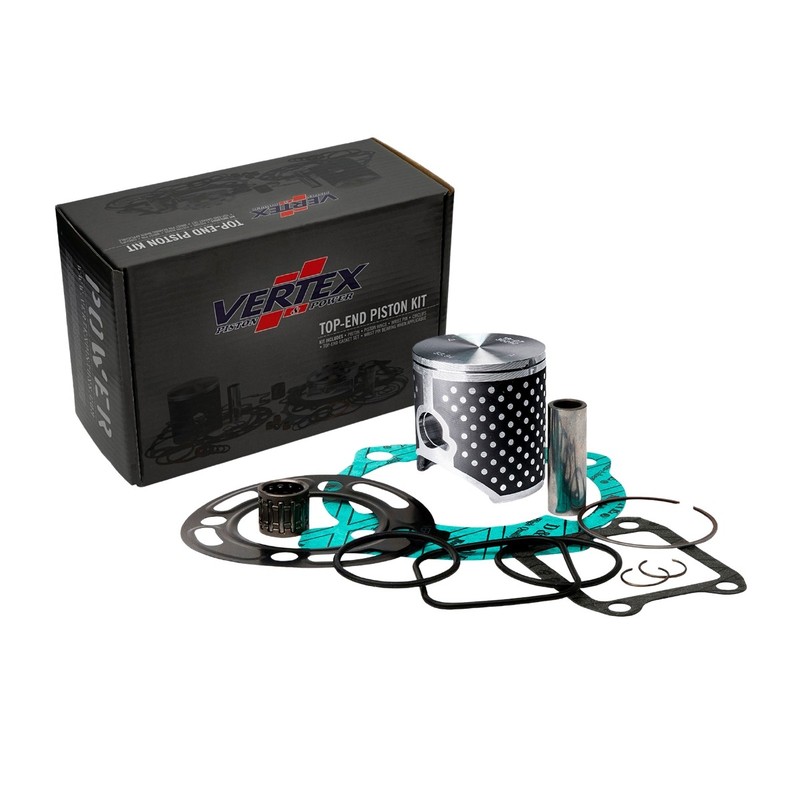

Kit image

Kit images are generic and for reference only. Each motorcycle receives the specific piston and parts for its application.

Piston type

R Race

Cast piston developed with Vertex technology

Cylinder diameter

72 mm

Available in these piston diameters

Diameter selection

Each trailing letter in the code (A, B, C, D, …) identifies a different piston size, selectable via the Diameter attribute.
