HT-XT-S01 X-TRE Power Box SUZUKI V-Strom 650 XT (faro singolo) 650 2017-2020
  • HT-XT-S01 X-TRE Power Box SUZUKI V-Strom 650 XT (faro singolo) 650 2017-2020

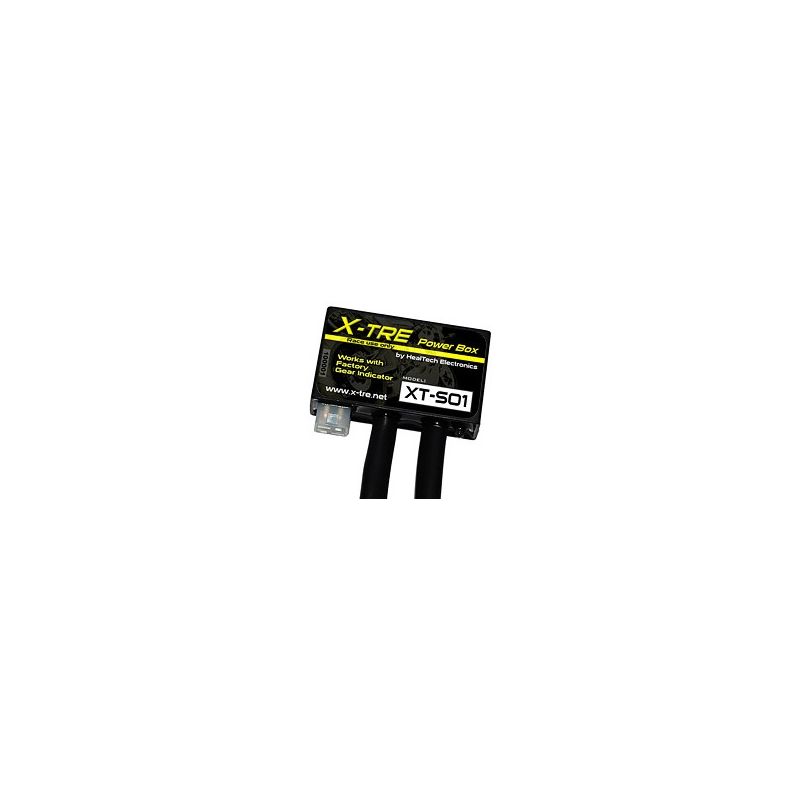

HT-XT-S01 override limiter gear X-TRE Power Box SUZUKI V-Strom 650 XT (single headlight) 650 2017-2020

You can save 11% on this order and pay €85.04 if you join Sixrace Pro

HealTech

€115.90
€95.04 Save 18%
Tax included
HT-XT-S01 (ID 123417)
HEALTECH HT-XT-S01 SUZUKI V-Strom 650 XT (faro singolo) 6502017 2018 2019 2020
Quantity
Available

override limiter gear (B)

X-TRE Power Box XT-S01 (F21200)
> X-TRE Power Box
PRODUCT
HealTech >> X-THREE POWER BOX
The X-TRE control unit is designed for Japanese bikes that are equipped originally of 'indicator inserted brand. X-TRE is an advanced "Timing Retard Eliminator" or remove restrictions from the houses in some gears of the bike. The new XTRE feature is the maintenance of the original gear indicator function of the motorcycle. This is possible thanks to a processor that real-time coding / decoding the signal sent from the controller to the instrumentation. This feature is unique, since all other devices currently on the market disable the original speed indicator function.

The X-TRE device improves the response of the engine, torque and acceleration in partial load usually in the gears from 1 ^ to ^ 3, and excludes the maximum speed limitation / limiter 6th gear on motorcycles with 1,000 cc and over (GSX-R 1000, GSX-R 1300 Hayabusa, B-King). The device will automatically excludes once inserted the crowds not to affect the idle speed.

Just like GIPRO / ATRE, even the X-TRE device comes with the user's choice of walking / map and give you the same benefits, but now with X-TRE is no longer the need to install a display counts additional gears if the bike it is already equipped. For bikes that are not equipped with an original speed counts, the GIPRO / ATRE is still the best solution on the market.

Another feature is the ability to easily check the run / set map. The device is installed under the fuel tank, not visible, and due to the design without buttons allows easy adjustment and / or control settings comfortably seated on the bike.

X-TRE works well with or without other electronic devices like the Power Commander or SpeedoHealer.

The small device is installed in about 25 minutes on most motorcycles using original connectors, only one wire needs to be cut for installation. In the box are provided with quick connectors sealants to high quality gel that allow a simple precise and safe connection without the need of having to solder the wires.

FAQs:

X-TRE can work together to SpeedoHealer device?
Of course, both units work perfectly.

I installed a Dynojet Power Commander of, there are reasons to install an X-TRE?
YES ', the benefits are: - The Power Commander can change the map based on a single gear. The X-TRE device implements the Power Commander fixed because the map of the original unit in the map without restrictions, regardless of which gear is selected. - The Power Commander can alter your fuel, while the X-TRE device disables the early restrictions in low gear. - The X-TRE device disables the speed limitation (and limiter in sixth) on Suzuki 1000cc and above, the Power Commander can map the extended function.

It must be re-map the Power Commander after installing the X-TRE device?
No, the PCIII is normally mapped into 4th gear, where the X-TRE device does not have particular effects.

Together with the Power Commander I also installed the module for the change of 'early, can I still use the X-TRE device?
YES ', the X-TRE device does not alter the advance curve, but simply force the original control unit to use the best map advance in all gears.

I have to do something if I unlink X-TRE device or replace the battery from the bike?
No.

How can I set the X-TRE device if it is without buttons?
Since the X-TRE device is installed under the tank so it is not easy to access, has been designed interface control so that it is possible to check or program the TRE mode set remaining comfortably seated on the bike. It will be necessary to follow a simple sequence and use the gear lever, the ignition key and the RUN / OFF switch of the motorcycle. The system works also in the presence of an electronic exchange device. There will be a visual confirmation of the selected mode through the indicator counts the original speed. In addition, the X-TRE device is equipped with an LED status indicator that, in case of problems, it is very useful to identify which wire should have a poor contact.

The list
applications is constantly changing - check for updates

HealTech
HT-XT-S01 • 123417
FASTER96

Data sheet

Motorcycle brand
Suzuki
Motorcycle Model
V-Strom 650 XT (faro singolo)
Motorcycle Year
2017, 2018, 2019, 2020
Cilindrata Moto
650
Fascia Sconto
B
