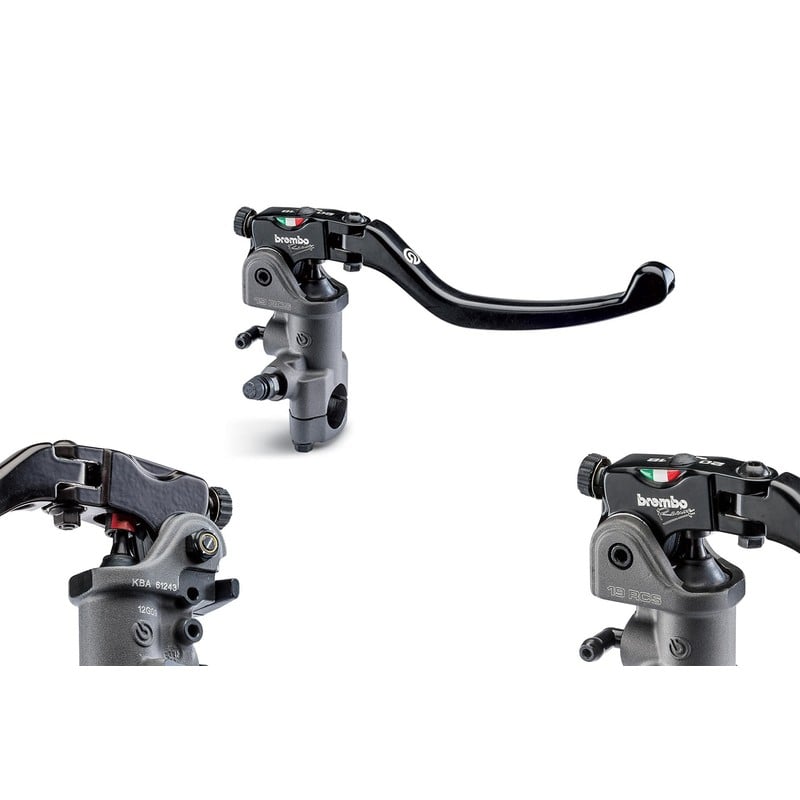

RADIAL BRAKE MASTER CYLINDER BREMBO 19RCS FOLD UP LEVER 18 20 RATIO Ktm CNC Racing 110A26310

Adjustable (RCS) Radial Master Cylinder
The RCS device consists into an eccentric drive that allows to select the pump lever ratio between 18 and 20 mm, to obtain the ideal feeling among the rider, his driving style, the bike and the course: simply selecting the lever ratio, it is now possible to have a more reactive system (20 mm) or a more adjustable one(18 mm).

Technical Info
Moto GP Piston
Piston, seals and push rod are the same as those used in the official MotoGP and SBK master cylinders: very narrow tolerances for the highest precision while braking.
Body
Produced in forged aluminium alloy, is partially CNC machined and then finished by hard anodizing process.
Lever
It is made by two main components: the lever drive and the “half” folding lever, both produced in forged aluminium with black finishing.
Micro-Switch for Rear Brake Light
For road use of the 19RCS M/C, the body has a dedicated housing for a rear light micro-switch, included in the box.

UNIVERSAL PRODUCT: check the possibility of correct assembly in a specialized workshop
